Example Mappings

Example mappings are YAML files stored in discoveries/example-mappings/. They capture the rules, examples, and questions discovered during an Example Mapping session for a story.

Format

story: story-key

rules:
  - id: R-01
    name: Rule description
    examples:
      - id: EX-01
        name: Example description
    issues:
      - https://github.com/owner/repo/issues/1
    automated: true
  - id: R-02
    name: Rule the spec no longer asks for
    retired: true
    superseded_by:
      - livt://mapping/story-key/rule/R-03

questions:
  - id: Q-01
    text: Question text

ubiquitous:
  - term-key

story is optional (links to the corresponding story detail page)
IDs must be unique within their rule or question list
ubiquitous is optional: each entry is a ubiquitous language term key, rendered as a pink sticky linking to ubiquitous.html#{term-key}. A key with no matching term file renders as a plain pink card.
issues is optional: the rule’s automation Issue URLs on implementation repos (Issue URLs only). The livt repository records the links; their state lives at the URL target. A rule without issues is unlinked.
automated is optional: records the judgment that the rule is actually automated by tests, which is independent of Issues being filed or closed. Absent means not automated. Set it when the rule’s automation lands; unset it when the rule changes.
retired is optional and applies to a rule, an example, or a question: it records that the item is no longer part of the spec. Absent means live.
superseded_by is optional and goes with retired: the livt URIs of whatever took the item’s place. Absent means nothing did.

Retiring an item

An item that no longer holds is marked retired: true — never deleted, and never commented out:

Deleting frees the ID. With R-01/R-02/R-03 on file, deleting R-03 makes R-02 the highest, so the next rule takes R-03 back. A livt://mapping/{story-key}/rule/R-03 reference already quoted in an Issue or a test comment then resolves to a different rule instead of failing — the quietest way for a reference to break. Retired items keep their IDs taken: new IDs are numbered from the max including them.
Commenting out loses the record. A comment is not part of the YAML structure, so any tool that rewrites the file drops it. retired: true is a field and survives.

A retired item stays readable in the file and still resolves by its livt URI, carrying retired: true so the reader can tell. It leaves the board and the Tasks page: a retired question is not an open question, and a retired rule is not waiting for a test.

Saying where the spec went

Retirement alone tells a reference it has stopped, not where to go. superseded_by adds that half — the livt URIs of whatever took the item’s place:

rules:
  - id: R-02
    name: Rule the spec no longer asks for
    retired: true
    superseded_by:
      - livt://mapping/story-key/rule/R-05
      - livt://mapping/another-story/rule/R-01

questions:
  - id: Q-01
    text: Question that turned into a rule
    retired: true
    superseded_by:
      - livt://mapping/story-key/rule/R-05

It is a list, so a rule that split into two names both.
It holds livt URIs, not bare ids. A successor can live in another mapping — the rule moved to the story that actually owns it — and R-05 on its own names nothing, since ids restart in every mapping.
A settled question points at the rule that settled it. The answer lands as a rule; the Question card never carries one.
Nothing replaced it? Leave superseded_by off. Plenty of retirements are just the business no longer asking.

Only the pointer is structured. Why the item was retired belongs to the commit that retired it, where it is written once and cannot drift — a second copy in the YAML would. Tooling reads the pointer back as URIs and stops there: the successor is one read away for whoever needs it, and inlining its text would spend a consumer’s context on a hop most of them never take.

Visual Layout

The board renders cards in the Example Mapping format:

Yellow card: Story (top)
Blue cards: Rules (row below story)
Green cards: Examples (stacked under their rule)
Red cards: Questions (separate column)
Pink cards: Ubiquitous language terms (referenced via ubiquitous, below the board)

Example

discoveries/example-mappings/confirm-discovery-outcomes.yaml:

rules:
  - id: R-01
    name: An example mapping can be rendered as a sticky view with only a story reference
    examples:
      - id: EX-01
        name: A YAML with only a story reference displays a single yellow Story card

  - id: R-02
    name: Cards are laid out following the Example Mapping format
    examples:
      - id: EX-01
        name: Rules are displayed as blue cards in a row below the Story card
      - id: EX-02
        name: Examples are displayed as green cards stacked under their Rule
      - id: EX-03
        name: Questions are displayed as red cards in a separate column

questions: []

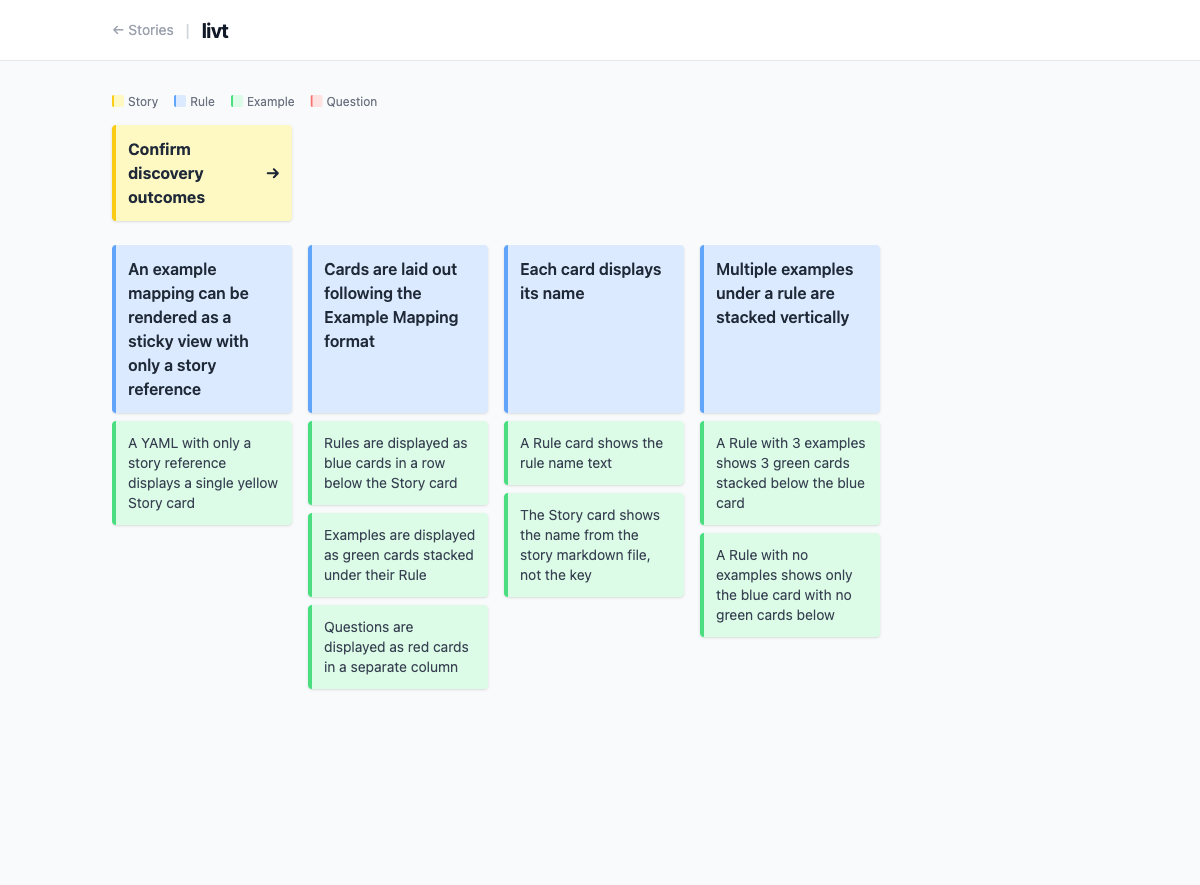

Example mapping board
